荒料切割设备

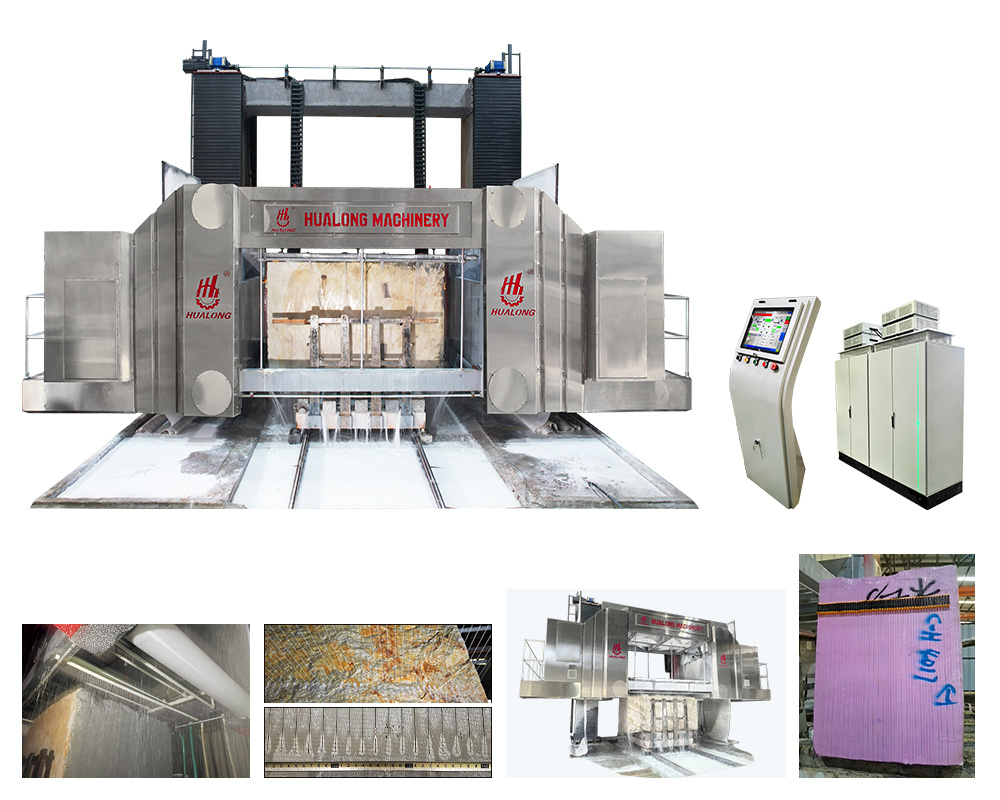

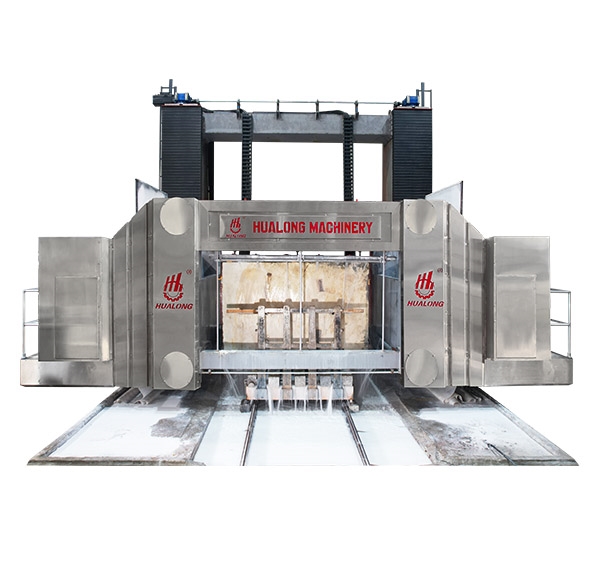

HLMW-100/150 Super Thin Multi Wire SawHLMW-100/150 石材线锯

领跑智能制造新“石”代

HLMW-100/150 Super Thin Multi Wire SawHLMW-100/150 石材线锯

所属品牌:华隆

所属类别:荒料切割设备

想了解更多相关产品信息,请联系我们!

0594-2197723
hualongmc@163.com
我要咨询
  • 产品说明
  • 技术参数
采购可留言电话号码,我们会与您联系! 点击进入1688查看更多产品

Purchase please leave a message phone and email, we will contact you!

石材超薄多线锯
HLMW-100/150 超薄多线锯,由华隆机械研发的全新一代石材薄板切割技术的神奇设备,采用 0.3 - 0.8 毫米的超细金刚石线,成品率超过 97%。它是您将石块切割成板材的下一台理想设备,能带来以下诸多益处:
优势
(1)高产量 - 仅 0.4 - 0.7 毫米的切割槽的微型线锯使产量超过 97%,比传统线锯高出 15 - 20%。
(2)减少石粉排放:超过 90%。
(3)降噪 - 无振动,降低噪音超过 40 分贝。
(4)可生产 10 毫米以下的超薄板材。
(5)高精度防止线痕,使板材平整度提高 50%。
(6)节能 - 由于切割摩擦力大幅减少,电力消耗降低 50%。
(7)节省空间 - 设备占地面积减少超过 30%。


Ultra Thin Multi Wire Saw Machine

HLMW-100/150 Super Thin Multi Wire Saw, an amazing new machine developed by HUALONG Machinery defining the next generation stone block cutting technology, with 0.3-0.8mm thin diamond wire brings yield rate more than 97%. It's the next machine of yours to cut block to slabs for much more benefits as follows:

Advantage

(1) High yield - Tiny wire saws with only 0.4-0.7mm cuting grooves enable a yield of over 97%, 15-20% higher than conventional ones.
(2) Emission Reduction of Stone Powder: over 90%
(3) Noise reduction - No vibration, reduce noise over 40 dB.
(4) Ultra thin slabs below 10mm can be produced
(5) High precision prevent wire marks and improves the slab flatness by 50%.
(6) Power saving - reduce 50% electric power consumption because of much less cutting friction.
(7) Space saving - reduce equipment footprint by more than 30%.


联系我们,获取完整方案!
Contact us to obtain the complete solution!





Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet
华隆机械,数控五轴桥切机,四轴桥切机,4+1桥切,5+1桥切,三轴桥切机,红外线桥切机,石材切机,石材加工厂设备,石材抛光机,石材抛光设备,石材加工中心,台面加工中心,水刀,水刀切割机,矿山开采设备,矿山圆盘锯,圆盘双刀锯,矿山机,矿山锯。

名称 NAME HLMW-100/150
最大存储线量 Max.Volume of Stored Lines 30km/50km
工作线速 Operating Line Speed 25-40m/s
升降形式 Ascending & descending form Wire down pressure 线网下压
主轴冷却方式 Spindle cooling system Liquid cooling 液冷
金刚线直径 Diameter of diamond wire 0.3-0.8mm
加工厚度 Thickness of slabs cutted 5-30mm
主轴最高转速 Max. spindle speed 3000Rpm/min
最大切割长度 Max. cutting length 3500mm
最大切割高度 Max. cutting height 2000mm
最大加工荒料尺寸 Max. dimensions of block processable 3500x2100x2100mm
主机功率 Main motor power 60kw
设备总功率 Gross power 310kw
机台尺寸 Machine dimensions 7800x4800x6580mm

温馨提示:如果想了解更多细节,规格、标准、价格和解决方案,请联系我们。
