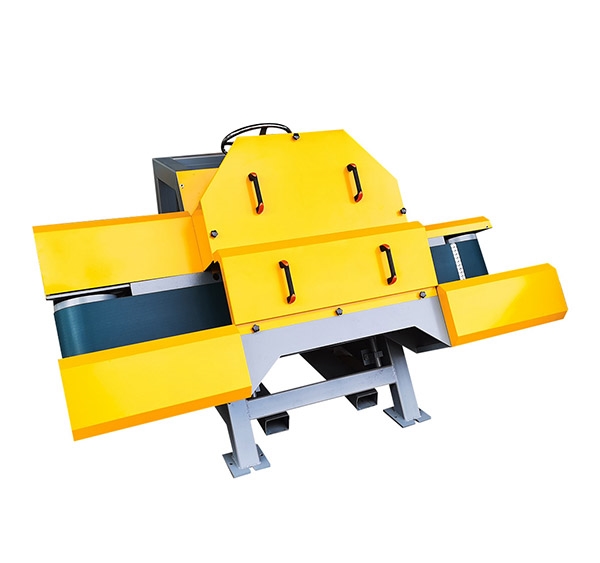

HLVS-800/1200 Thin Stone Veneer Saw HLVS-800/1200石材饰面锯

领跑智能制造新“石”代

HLVS-800/1200 Thin Stone Veneer Saw HLVS-800/1200石材饰面锯

所属品牌:

所属类别:产品库

想了解更多相关产品信息,请联系我们!

0594-2197723
hualongmc@163.com
我要咨询
  • 产品说明
  • 技术参数


石材饰面锯
HLVS-800/1200 型饰面锯采用独特的 V 型结构切割面,能够简单、高效且盈利地切割薄型石材饰面平板和 90 度角。它能对花岗岩、大理石、砂岩、石灰石或砖块的薄层劈裂面或天然饰面块进行高精度切割。
这种石材饰面锯是装饰石材饰面材料加工商的必备设备。

Thin Stone Veneer Saw

HLVS-800/1200 Veneer Sawsare designed with unique v-structured cutting surface to cut thin stone veneer flats and 90-degree corners simple, efficient and profitable. It provides high accuracy cutting of thin layers of split-face or natural finished block of granite, marble, sandstone, limestone or bircks
This stone veneer sawing machines is an essential equipment for fabricators of decorative stone facing materials.



主要特点1. 这种坚固耐用的薄石材饰面锯切效果稳定,使用方便。2. 它能够将大块的天然石材和人造石材加工成质量上乘的薄型石材饰面板和各种转角,适用于任何建筑项目。

Main Features

1. Thisstrong and durable thin stone veneer saws deliver consistent fabrication and are easy to use.

2. It canhelp transform large pieces of natural and engineered stone into thin stone veneer flats and corners of exceptional quality for any construction project.

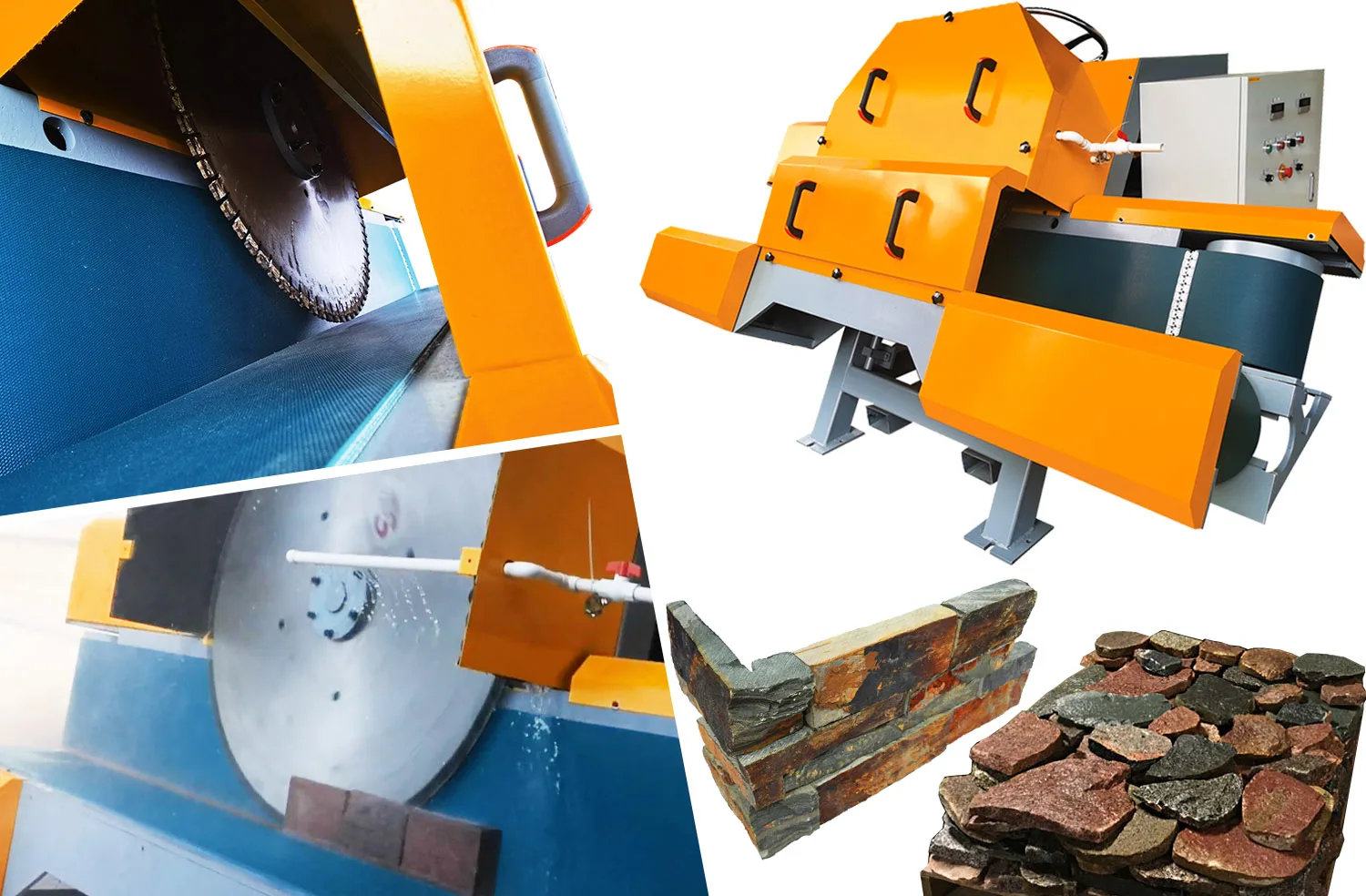

Cutting Thin Stone Veneer Flats & Corner Pieces

切割薄石材饰面板的平面部分和转角部分







联系我们,获取完整方案!
Contact us to obtain the complete solution!

Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet
华隆机械,数控五轴桥切机,四轴桥切机,4+1桥切,5+1桥切,三轴桥切机,红外线桥切机,石材切机,石材加工厂设备,石材抛光机,石材抛光设备,石材加工中心,台面加工中心,水刀,水刀切割机,矿山开采设备,矿山圆盘锯,圆盘双刀锯,矿山机,矿山锯。






产品型号 Name 单位        UNIT HLVS-800 HLVS-1200
刀片直径 Blade Diameter mm 800 1000 / 1200
最大切割厚度 Max. Cutting Depth mm 280 350 / 450
最大锯片转速 Max. Blade Speed rpm 780 900
锯片上下距离 Saw blade up/down distance mm 0-120 0-250
锯片前后距离 Saw blade back/forth distance mm 0-200 0-250
可加工石材厚度 Processable stone thickness mm 20-220 20-270
传送带尺寸(长 x 宽 x 厚)  Conveyor Belt Size (Lx W x T)  mm 5970*280*7 6800*400*7
传送带(可调)速度 Conveyor (Adjustable) Speed mm/min 600-2450 600-2450
主电机功率 Main Motor Power kw 22 (30HP) 45 (60HP)
耗水量 Water Consumption m³/h 3.5 4个
总重量 Gross weight kg 2300 3200
尺寸(长 x 宽 x 高) Dimensions(L x W x H) mm 2850x1900x1800 3300x2180x2180

温馨提示:如果想了解更多细节,规格、标准、价格和解决方案,请联系我们。
