生态水循环系统
适用于石材和陶瓷切割及制造行业

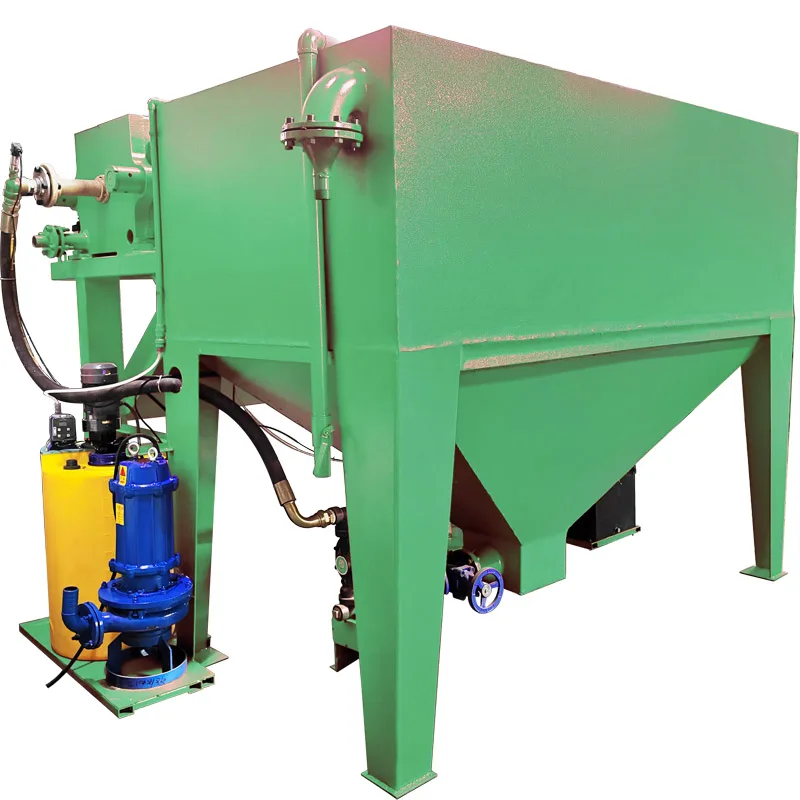

我们为石材行业设计的水循环系统是一种先进且高效的解决方案，旨在优化生产过程中的水资源利用。该系统尺寸紧凑，长 11.8 英寸，宽 8.5 英寸，高 7.9 英寸，重量为 6000 磅，功能强大且易于在任何工业环境中安装。

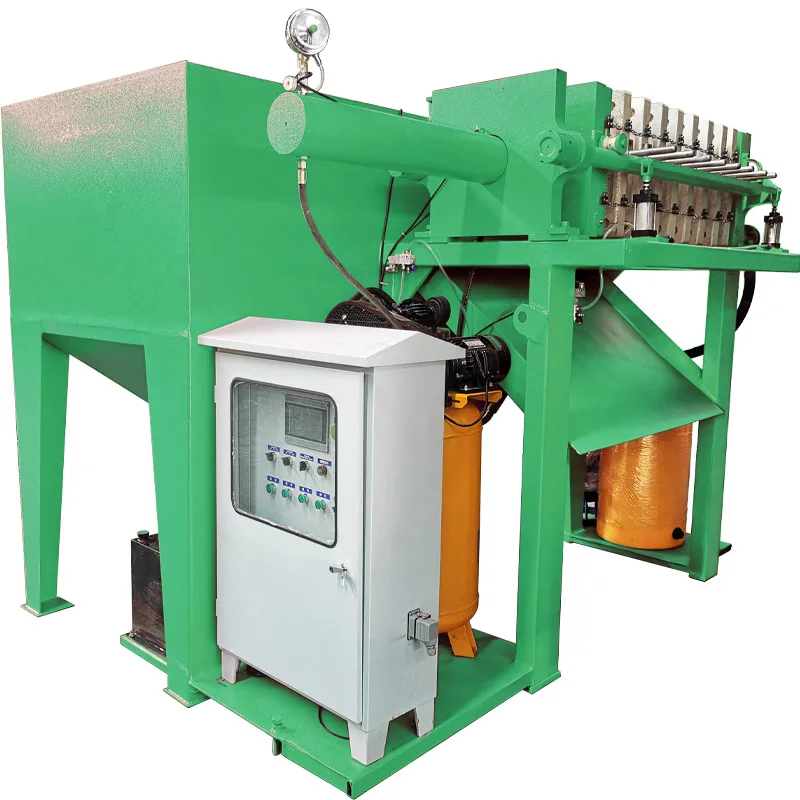

该系统配备有压滤机，有 8 块滤板，可实现高效的过滤和杂质去除。这确保了回收水的清洁，可随时用于生产过程中的再利用。此外，它还配有潜动泵和相关传感器，用于收集生产过程中产生的污泥，便于对其进行安全、高效的管理与处理。
For the Stone and Porcelain Cutting and Manufacturing Industry
Our water recycling system for the granite industry is an advanced and efficient solution designed to optimize the use of water in the production process. With compact dimensions of 11.8” long, 8.5” wide, and 7.9” high, and weighing 6,000 lb, this system is highly functional and easy to install in any industrial environment.
The system is equipped with a filter press, which has 8 plates for maximum efficiency in filtration and removal of impurities. This ensures that the recycled water is clean and ready for reuse in the production process. In addition, it has a submerged pump and a relative sensor to load the sludge generated during the process, which facilitates its management and disposal in a safe and efficient manner.
优点：
* 配备 8 个滤网，一体化设计
* 包含加压泵，以维持澄清水的压力
* 操作直观的触摸屏，具备自动每日工作循环功能
* 闭合式循环水回收系统
Advantage:
* Equipped with 8 plates, all-in-one design
* Pressurized pump included to maintain the pressure of the clarified water.
* Intuitive touch screen with automatic daily work cycles.
* Closed loop water recycling.
Maximize water savings on each job 在每项工作中最大限度地节约用水
|
Technical Data
|
|
Material 材料
|
Steel 钢铁
|
|
Usage 用法
|
Water Recycling for Stone Fabrication 石材制造中的水循环利用
|
|

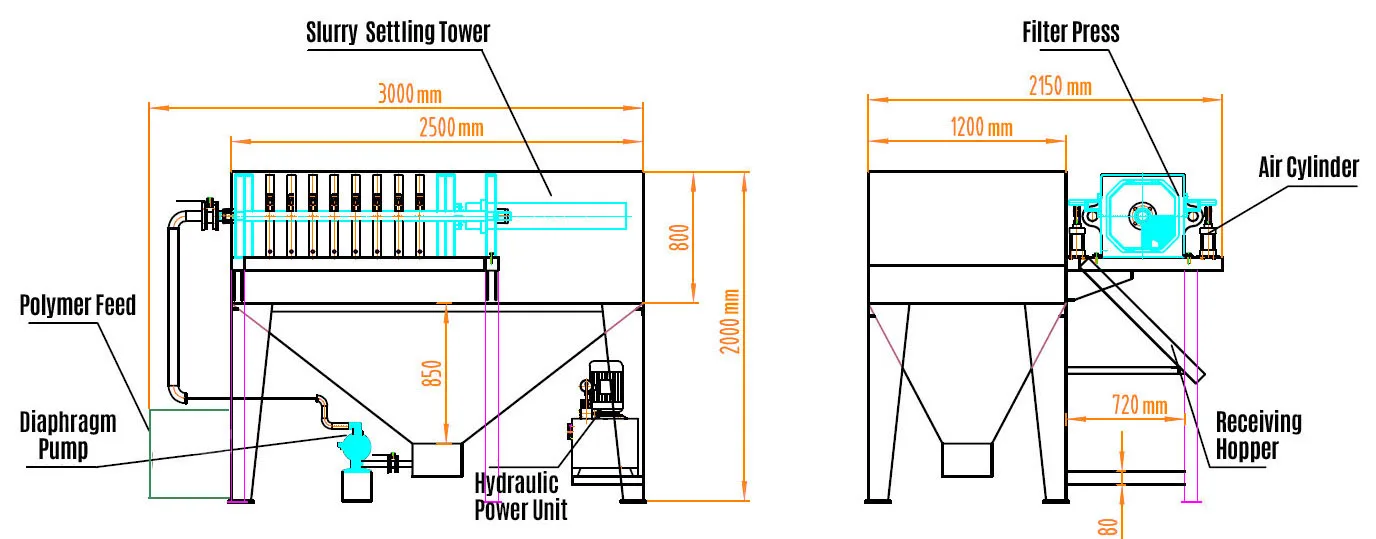

Size 尺寸
|
As the above marks. Other sizes can be customized. 如上所示。尺寸也可根据需求定制。
|
组件
* 自动过滤压榨机 - 快速开启振动筛，10 块板，尺寸：500x500x50 毫米，每次出渣量：75 千克
* 空气隔膜进料泵
* 污泥浓缩器集水箱 - 4 立方米
* 竖式空气压缩机
* 自动计量泵
* 塑料桶 - 100 升
* 浸没式泥浆泵 - 升扬高度：30 米，功率：4 千瓦
* 电机：3 千瓦
Companents

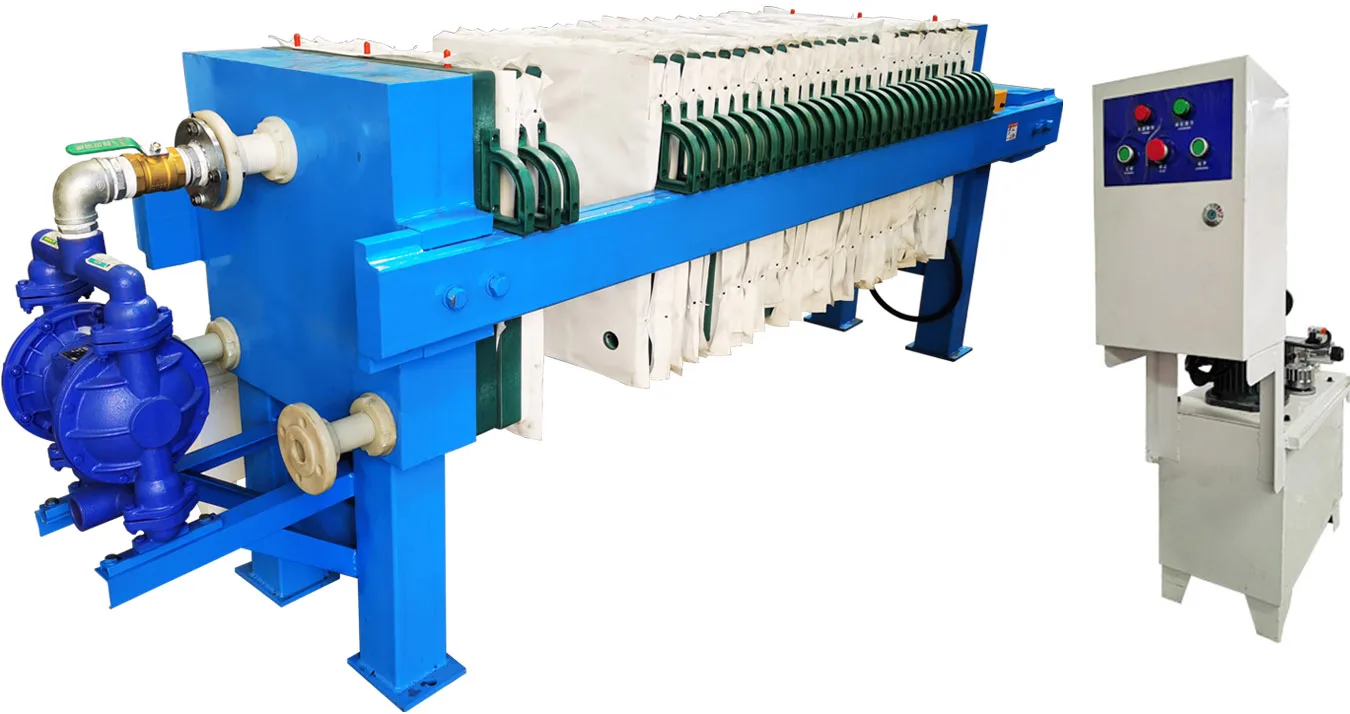

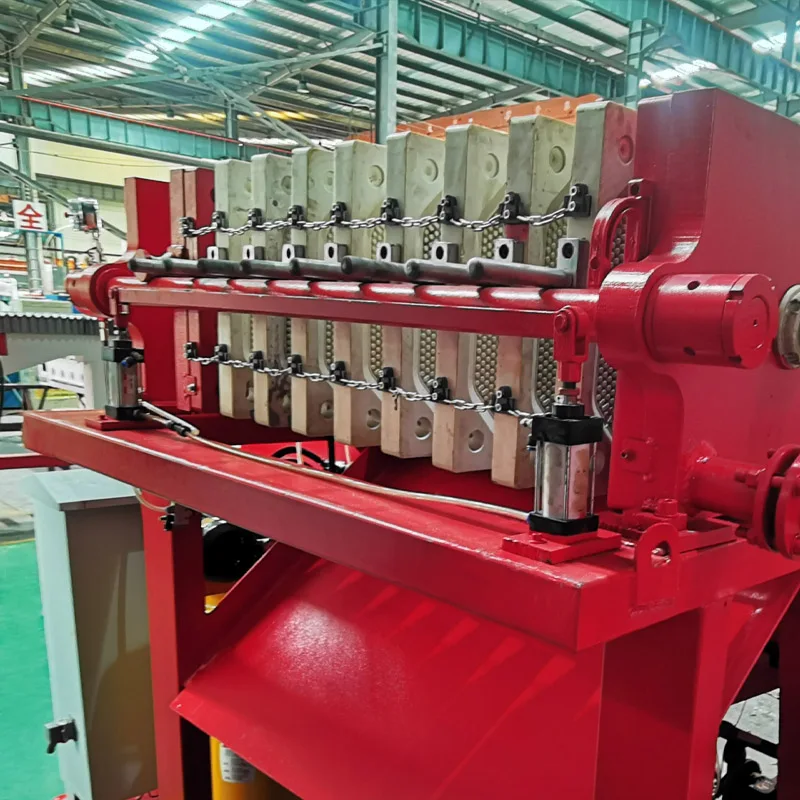

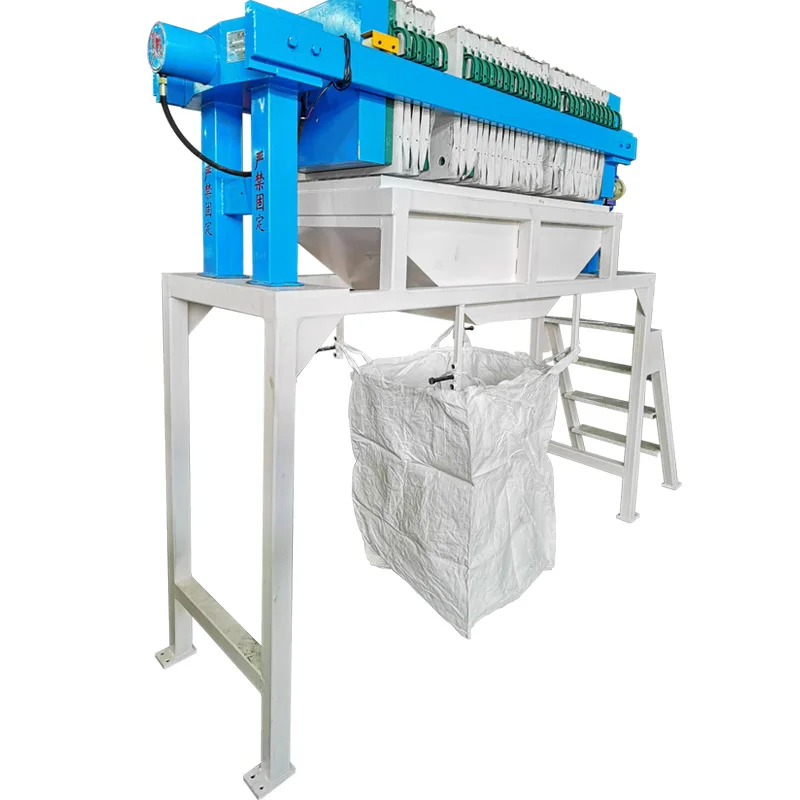

* Automatic filiter press - quick opening vibrating decake,
10 plates, size: 500x500x50mm, Cake output: 75kgs/time
* Air diaphragm feed pump

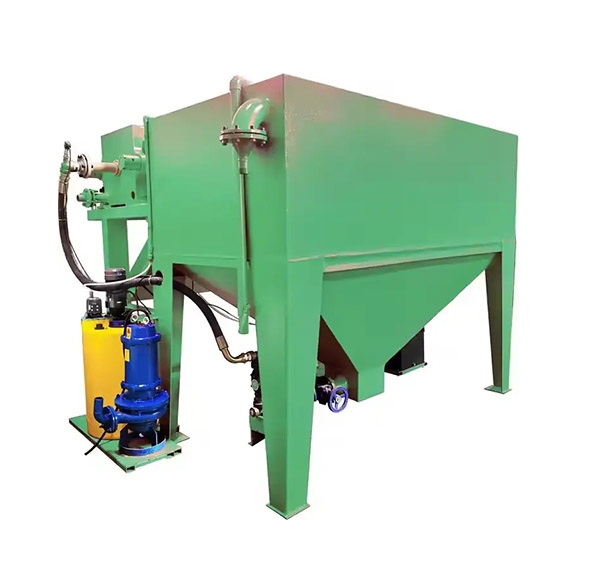

* Sludge concentrator setting tank - 4m3
*

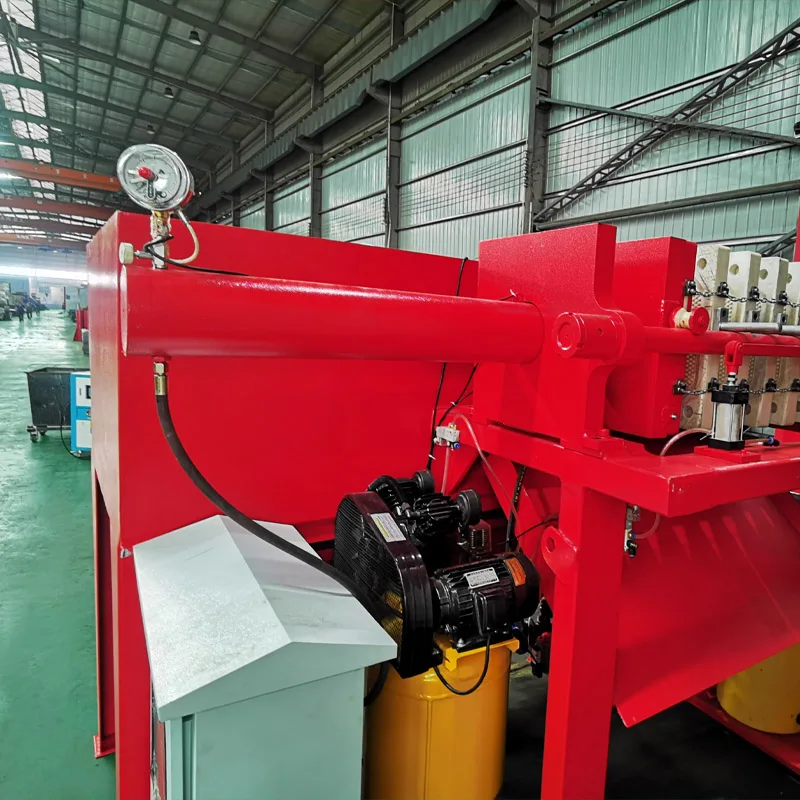

Vertical air compressor
* Automatic dosing pump
* Plastic drum - 100L
* Submerged slurry pump - lift: 30m, power: 4kw
* Motor：3 kw
Benefits of Using a Filter Press and Recycling Water
* Very Inexpensive Equipment
* Safe and Easy to Operate
* Lower Maintenance Costs
* Easily to Scale and Expand for Production
* Very Fast Extractions
* Save Money on the Cost of Water
* Save Money on Sewage and Disposal Costs
* Closed Loop, zero-discharge Solution
Application Fields:
* Miningoperations and aggregate
* Marble and stone cutting
* “Ready-mix” concretewashout water recovery
* Food & beverage production
* Medicine
* Chemical Manufacturing
* Paper making
* Textile, printing & dyeing
* Metallurgy
* Sewage treatment
应用领域：
* 采矿作业及矿石开采
* 石材切割
* “预拌”混凝土冲洗水回收
* 食品与饮料生产
* 医药
* 化学制造
* 纸张制造
* 纺织、印刷与染色
* 金属加工
* 排水处理
Filtered Cakes
