HLCM-8E80Stone Edge Polishing MachineHLCM-8E80石边抛光机
领跑智能制造新“石”代
HLCM-8E80Stone Edge Polishing MachineHLCM-8E80石边抛光机
所属品牌：
所属类别：板材打磨设备
想了解更多相关产品信息，请联系我们！
0594-2197723
hualongmc@163.com

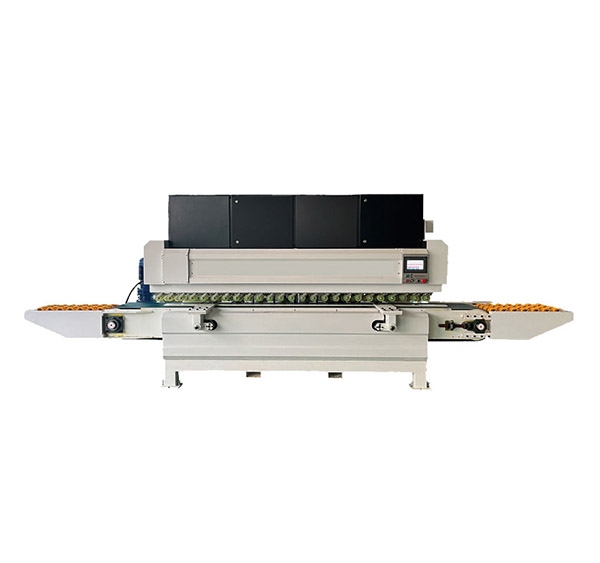

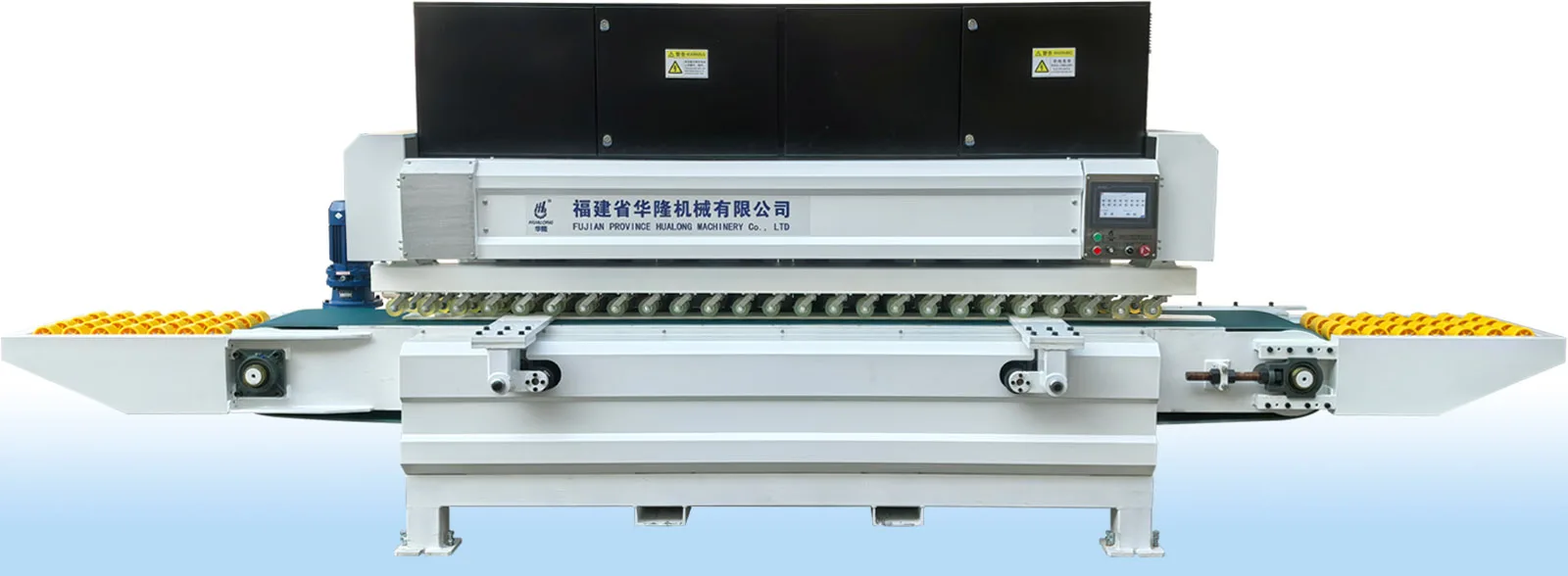

石边抛光机
HLCM-8E80 型机器具备线性加工和全自动功能，是一款特殊形状的机器，适用于大理石、花岗岩、人造石、陶瓷、玻璃等材料的批量边缘打磨生产。
这种具有连续运行功能的边缘抛光机降低了人工成本，提高了产品质量，并且无需像传统单头铣床那样进行复杂的夹持操作以及更换磨盘。它是大规模石材打磨加工行业升级的首选设备。
Stone Edge Polishing Machine
HLCM-8E80with line processing and full auto, is a special-shaped machine fits for mass production of edge grinding of marble, granite, artificial stone, ceramics, glass etc.
The edge polishing machine with continuous operation reduces the labor cost, improves product quality and ignores the complex clamping of traditional single head milling machine and replacement of grinding wheel. It's the preferred equipment in the upgrading of mass grinding stone processing industry.
主要特点
1. 刀具调整能确保所有砂轮保持一致。
2. 快速更换的轮子大大节省了更换砂轮的时间。
3. 恒压自动补偿取代了传统用于保持产品表面亮度的补偿方法。
4. 砂轮的轴心与市场上的砂轮相匹配，这大大节省了磨料的成本。
5. 当物料短缺时，会自动发出悬停警报。
6. 能够实现任意形状的边缘以及倒角槽加工。
Main Features
1. Tool setting keeps all grinding wheels be consistent.
2. Fast changing wheel saves a lot of time for replacing grinding wheel.
3. The automatic compensation of constant pressure replaces the traditional method of compensation to maintain the brightness of the surface of the product.
4. The spindle of grinding wheel 30 matches the market grinding wheel, greatly saving the cost of abrasive.
5. Automatic hovering alarm in case of material shortage.
6. Be capable of arbitrary edge shape and the chamfering slotting.
|
名称
|
Name
|
单位Unit
|
HL8E-80
|
|
主电机功率
|
Main motor power
|
KW
|
4
|
|
总功率
|
Total Power
|
KW
|
36
|
|
成型轮直径
|
Dlameter of profile wheel
|
MM
|
140-180
|
|
抛光轮直径
|
Dlameter of pollshing wheel
|
MM
|
140-180
|
|
磨轮孔径
|
Hole diameter of wheel
|
MM
|
30
|
|
最大加工宽度
|
Max processing width
|
MM
|
2000
|
|
最大加工厚度
|
Max processing thickness
|
MM
|
80
|
|
加工速度
|
Processing speed
|
M/MIN
|
0.2-3
|
|
冷却水量
|
Water consumption
|
L/MIN
|
110
|
|
外形尺寸
|
0verall dimension
|
MM
|
4300*1200*2100
|
|
重量
|
Weight
|
KG
|
4500
|
温馨提示：如果想了解更多细节，规格、标准、价格和解决方案，请联系我们。
