CNC Diamond Wire Cutting MachineHLSJ-2000数控金刚石绳锯

领跑智能制造新“石”代

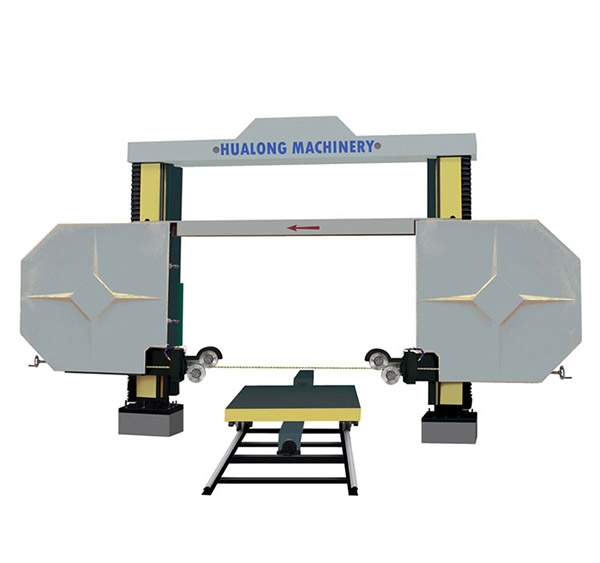

CNC Diamond Wire Cutting MachineHLSJ-2000数控金刚石绳锯

所属品牌:

所属类别:产品库

想了解更多相关产品信息,请联系我们!

0594-2197723
hualongmc@163.com
我要咨询
  • 产品说明
  • 技术参数

CNC金刚石线切割机
HLSJ-2000 采用数控控制,四轴联动,能够加工不同规格的石材以制作复杂形状的制品,例如圆弧板、实心和空心柱、罗马柱、大型实心线条、字母等等。

CNC Diamond Wire Cutting Machine

HLSJ-2000 adopts CNC control, four-axis linkage, can process different specification of stones for complex shape, such as circular arc board, solid and hollow column, Roman column, large-scale solid line, letter and so on.

主要特点
1)配备数控系统,使得人机交互界面既简便又灵活。
2) 飞轮张力具有稳定且恒定的拉伸模式,可提高切割精度。
3)各种复杂的二维表面均可进行加工处理。
4)切割速度可根据不同需求进行调节。
5)效率极高,其所加工的板材尺寸精确,边缘平整光滑。

Main Features

1) Equipped with CNC system, which makes the man-manchine interface easy and flexible.

2) Flywheels tension has a stable, constant stretch mode to enhance cutting accuracy.

3) Diverse, complex, 2-dimensional surfaces can be processed

4) Cutting speed is adjustable according to different requirements.

5) High efficiency, the slates it processed are of exact size, and the margin is flattened and sleek.

名称 Name 单位Unit HLSJ-1500 HLSJ-1800 HLSJ-2200
最大加工 尺寸 Nax processing dimensions mm 3000*2000*1500 3600*2000*1800 4000*2000*2100
串珠绳长度 String bead wire length mm 16500 19300 21350
串珠绳直径 String bead wire dianeter mm Φ8-Φ10 Φ8-Φ10 Φ8-Φ10
切割线速度 Cutting wire speed m/s 0-40 0-40 0-40
总功率 Gross power kw 19.38 19.38 19.38
耗水量 Water consumption m³/h 2 2 2
外形尺寸 Dinensions(L*W*H) mm 7500*6000*380 8800*6800*4800 9800*7000*5200
重量 Gross weight kg 7000 10500 14000

温馨提示:如果想了解更多细节,规格、标准、价格和解决方案,请联系我们。
