雕刻设备

3D Stone Sculpture Carving Machine3D 立体雕刻机

领跑智能制造新“石”代

3D Stone Sculpture Carving Machine3D 立体雕刻机

所属品牌:

所属类别:雕刻设备

想了解更多相关产品信息,请联系我们!

0594-2197723
hualongmc@163.com
我要咨询
  • 产品说明
  • 技术参数


3D 立体雕刻机

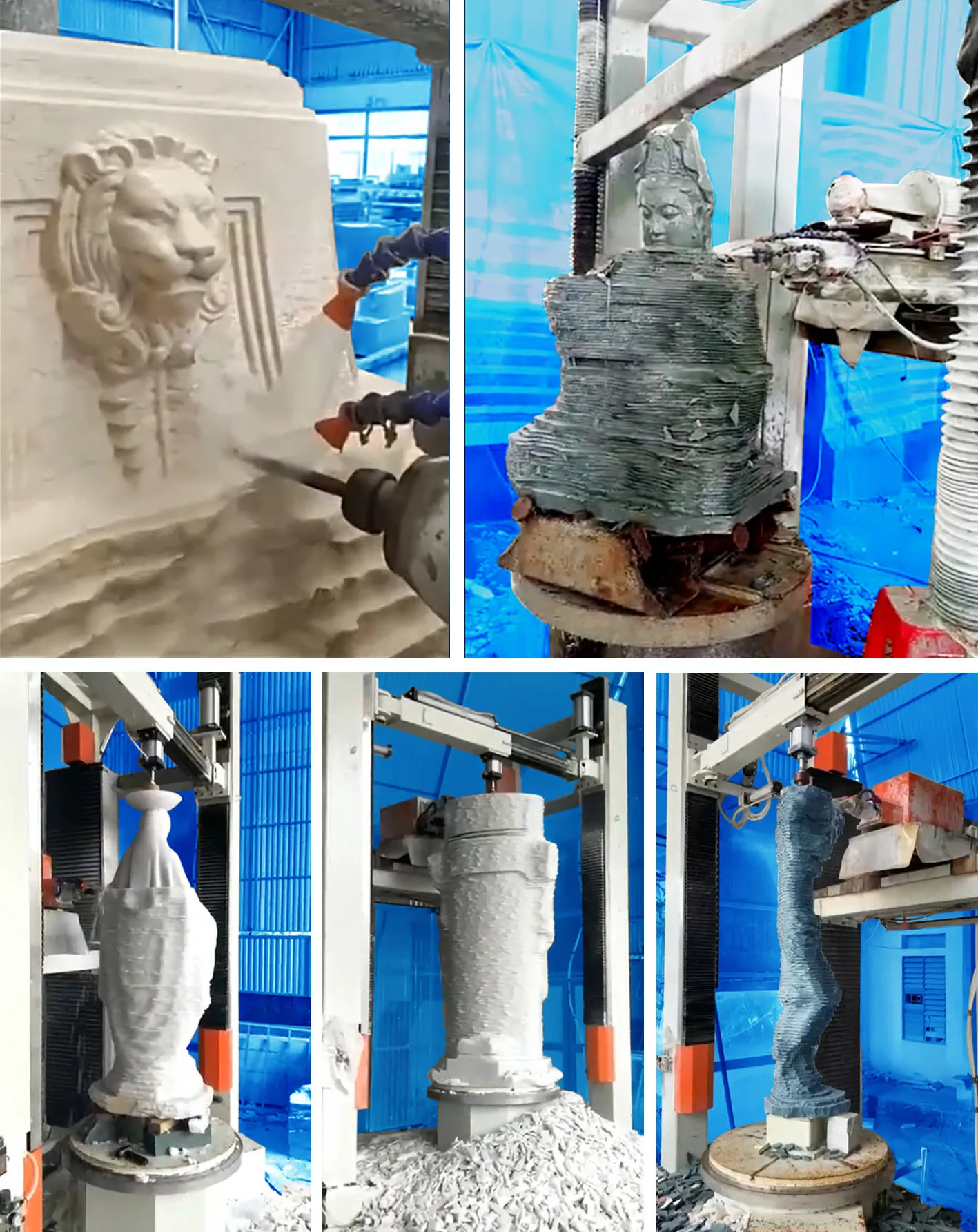

HLSD3-1525 是一款配备铣刀的四轴数控机床,还配备了可切换的锯片,用于快速粗加工。它能够对各种岩石进行三维立体雕刻,如大理石、花岗岩、石英岩、砂岩或人造石或陶瓷、玻璃、塑料、木材或泡沫等。
它主要应用于墓碑加工行业、家居装饰行业、工艺品行业,用于雕刻石雕佛像、石栏杆、石工艺品、石艺术项目及创意等。

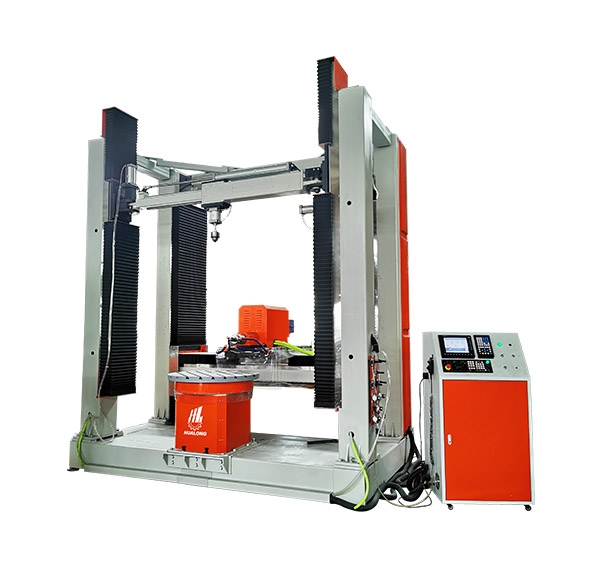

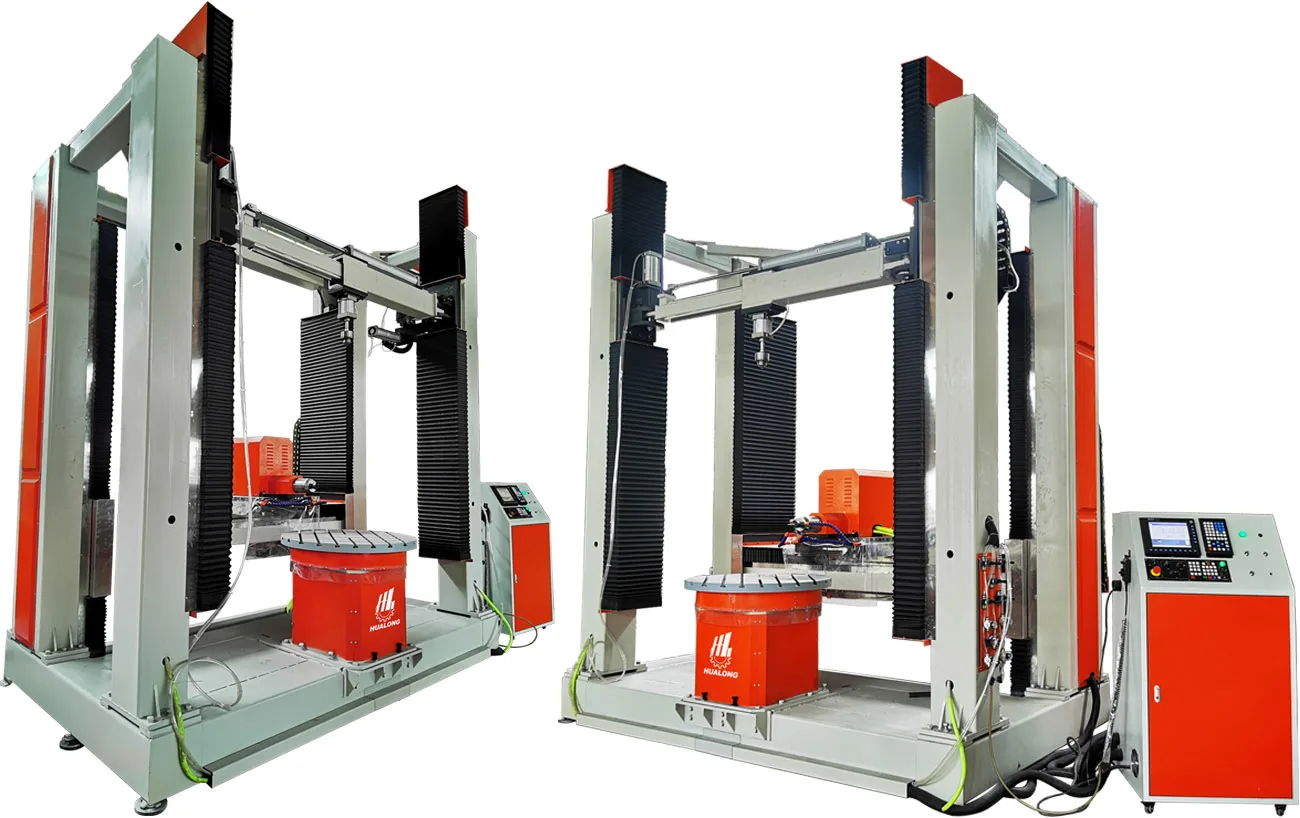

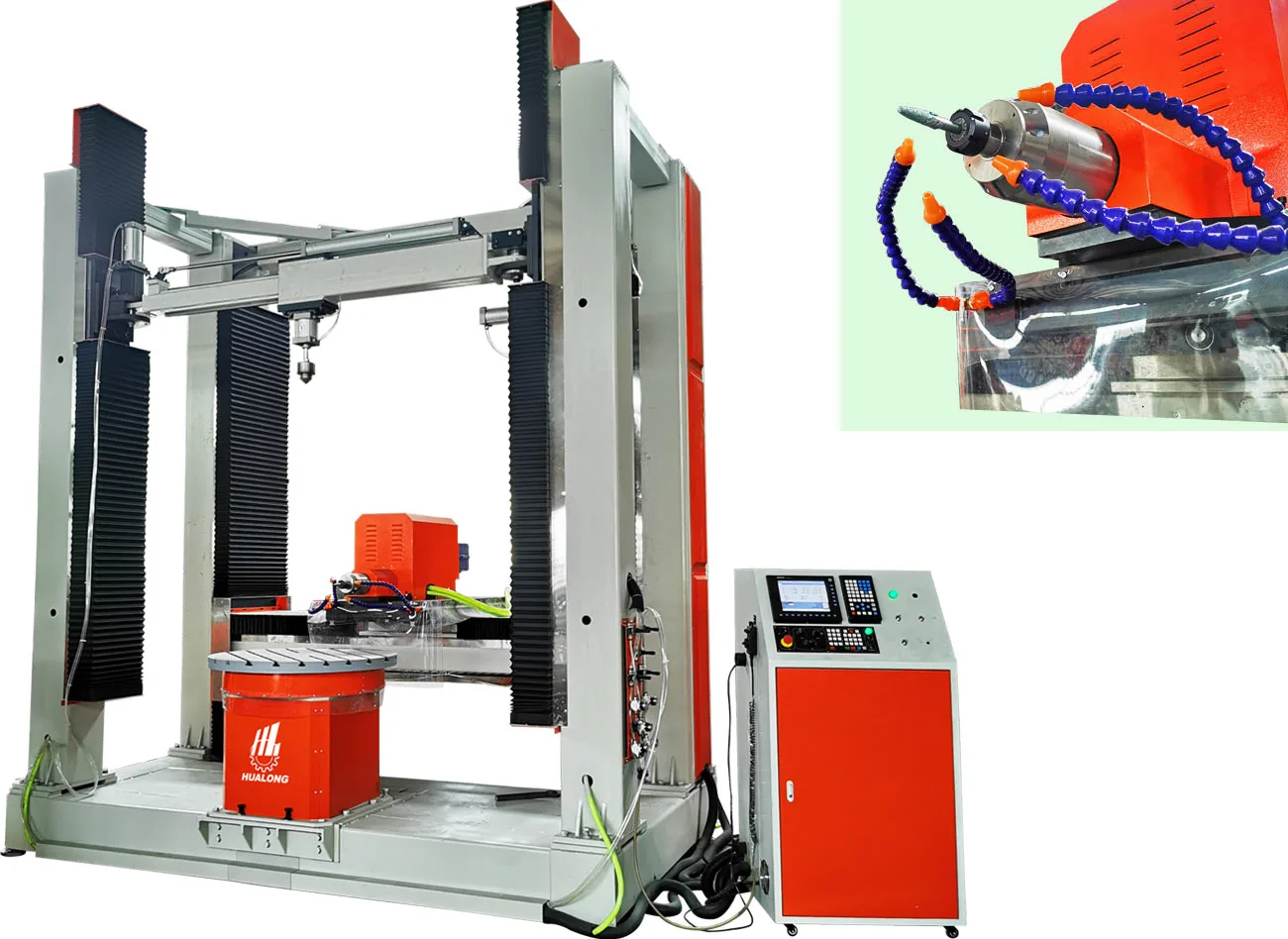

3D Stone Sculpture Carving Machine

HLSD3-1525 is a 4 axis CNC machine mounted with milling cutter for engraving and switchable saw blades for fast roughing. It can realize 3-dimensional stereoscopic engraving for all kind of stones, such as marble, granite, quartize, sandstone or artifical stone or ceramics, glass, plastic, wood or foam etc.
It's mainly applied to tombstone processing industry, home decoration industry, arts and crafts industry for carving stone Buddhas statues & sculptures, stone balustrades, stone crafts, stone artwork projects & ideas etc.

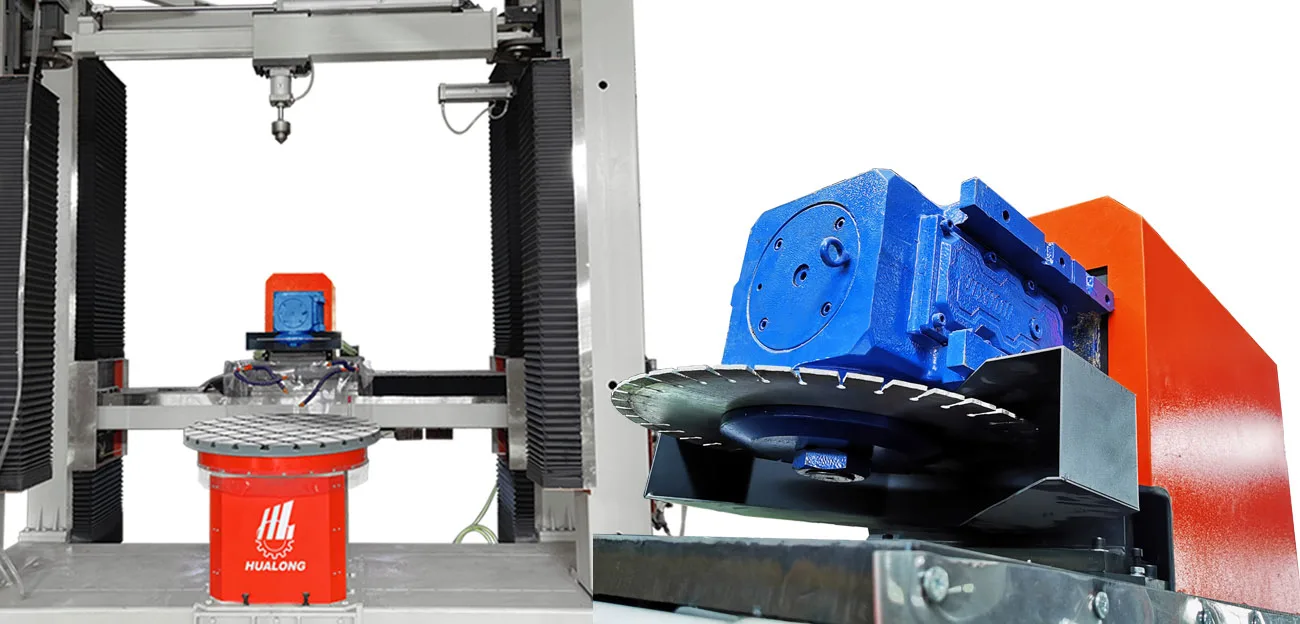

这台机器配备了可切换的双处理头。

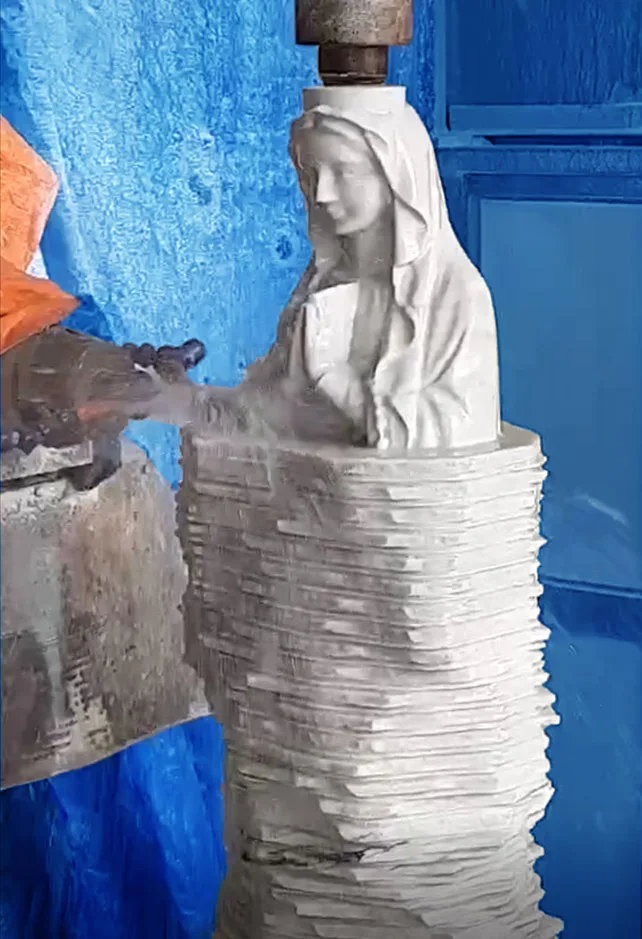

锯片先进行快速粗加工,从而节省了后续雕刻所需的时间。

This machine is mounted with switchable double processing heads.

The saw blade make fast roughing first and save lots of time for next engraving.


Main Features
1) Adopt NcStudio CNC control system large color screen display, easy and simple to operate.
2) Break to rusume function. Continue carving from break point after power resuming from failure.
3) C
ompatible with Artcam JD Paint CAM software and other software programs.
4) High-performance new material motors and drivers can resist heat, shock and bad environment, ensure the working high speed and accuracy..
5) Professional vector control Inverter guarantee the variety working speed, smooth operation and make lower power consumption.
6) Big standing type rotary table which adding thicken PVC board, Enhancing the loading capacity of the platform.
7) Steel tube lathe bed, low center of gravity, strong bearing capacity, stable and long working life.





主要特点
1) 采用 NcStudio 数控控制系统,配备大尺寸彩色显示屏,操作简便易懂。
2) 具备断点恢复功能。在电源恢复后,可从断点继续雕刻。
3) 与 Artcam JD Paint CAM 软件及其他软件程序兼容。
4) 高性能新型材料电机和驱动器能够耐高温、抗冲击和适应恶劣环境,确保工作速度高且精度高。
5) 专业的矢量控制变频器保证多种工作速度、平稳运行,并降低能耗。
6) 大型立式旋转工作台,增加了厚型 PVC 板,提高了平台的承载能力。
7) 钢管车床床身,重心低,承载能力强,稳定且使用寿命长。




型号 HLSD3-1020 HLSD3-1525 HLSD3-2030
工作平台尺寸 1500*2000mm 1500*2500mm 2000*3000mm
X、Y、Z轴运动定位精度 0.05/300mm
X、Y、Z轴运动重复精度 0.01
对角线精度 0.6/1000×1000mm
主轴电机功率 7.5+KW(水冷)
主轴电机可装卡最大刀具 φ20mm
主轴电机冷却方式/主轴转速 水冷/0-24000rpm
快速移动速度 15m/min
最高切削进给速度 10m/min
驱动系统 伺服系统
工作电压 主电机、主机床:三相380v/50Hz;
机身外型尺寸 3300mm×4500mm×4800mm
机器重量 ≈9000KG

型号 HLSD3-1020 HLSD3-1525 HLSD3-2030
工作平台尺寸 1500*2000mm 1500*2500mm 2000*3000mm
X、Y、Z轴运动定位精度 0.05/300mm
X、Y、Z轴运动重复精度 0.01
对角线精度 0.6/1000×1000mm
主轴电机功率 7.5+KW(水冷)
主轴电机可装卡最大刀具 φ20mm
主轴电机冷却方式/主轴转速 水冷/0-24000rpm
快速移动速度 15m/min
最高切削进给速度 10m/min
驱动系统 伺服系统
工作电压 主电机、主机床:三相380v/50Hz;
机身外型尺寸 3300mm×4500mm×4800mm
机器重量 ≈9000KG

温馨提示:如果想了解更多细节,规格、标准、价格和解决方案,请联系我们。
