该机采用PLC触摸屏操控，带网络远程连线功能，抛光磨料配置电流自动补偿，变频调速，进料可连续或间隔进料加工，电动压杆，为手动、自动一体机，可手动、自动分体操作，根据石材不同尺寸，厚度磨削各种大理石，花岗岩，人造石，瓷砖等材料的1/2圆边，1/4圆边，法国边，双法边，21号边等各种异形罗马边线形，粗磨、精磨、抛光工序一次完成，加工后亮度高于板面亮度，抛光磨轮磨损消耗后，磨轮可在运行过程中自动补偿，结构先进合理，精准度高，效率快，操作方便，维护简单，在磨削过程中可调节进料速度和进行量，最大加工4m/分钟，机械正常使用相当于正常石材加工15个人工作量，并杜绝出现工人加工时产生的工艺缺陷。

MB-8T-3015 Eight-head Horizontal CNC stone Line polish machine, applicable for granite and marble irregular edge polishing, fitted with auto grinding wheel compensation and PLC touch screen operation, stable operation performance.

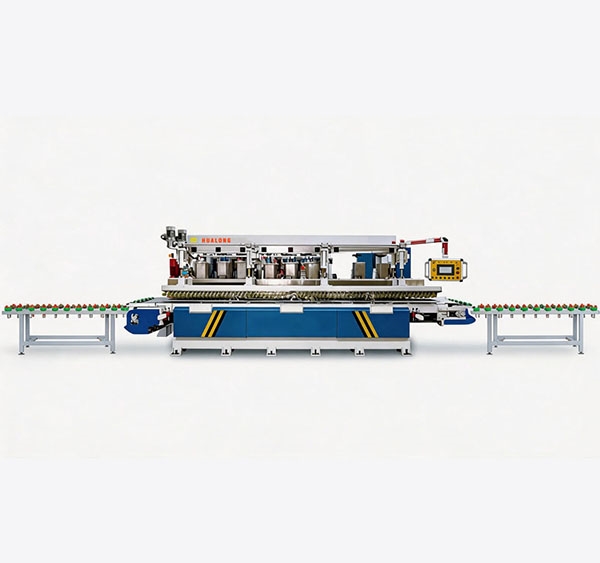

MB-8T-3015 Eight-head CNC Horizontal stone Line polish machine

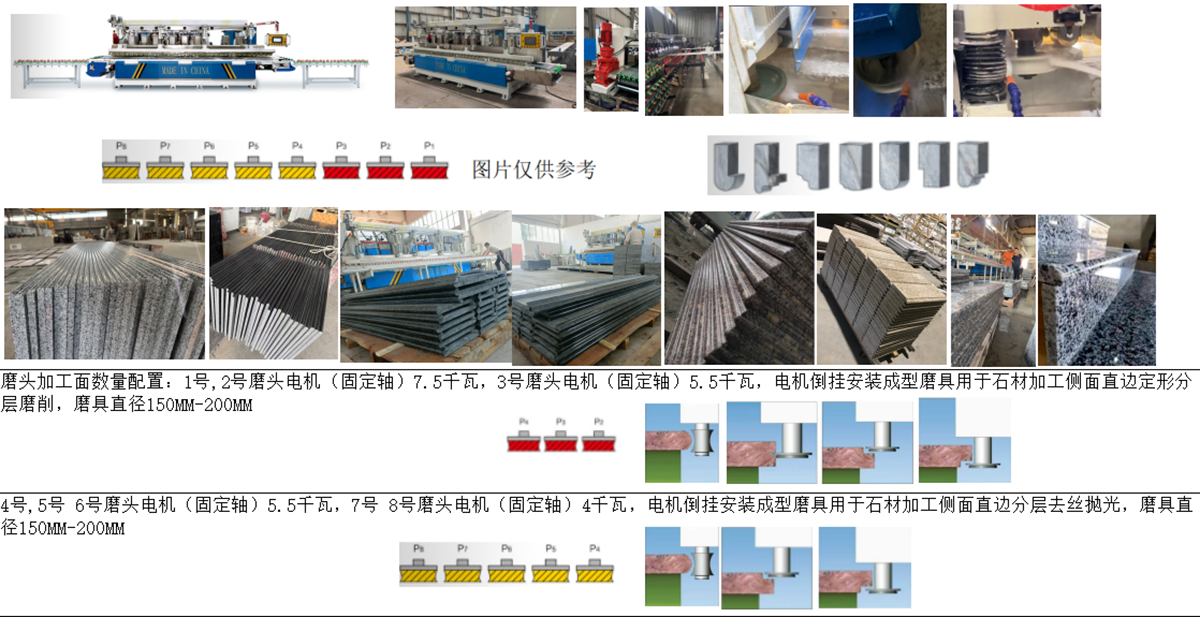

This is a full-automatic stone side processing equipment specially designed for stone processing factories. Equipped with 8 sets of independent polishing heads arranged in sequence, it can complete rough grinding, fine grinding and high-gloss polishing processes in one pass. The glossiness of processed stone sides is much higher than that of original stone surfaces.

The whole machine adopts intelligent PLC touch screen control, frequency conversion speed regulation and automatic grinding wheel compensation technology, supporting both continuous feeding and intermittent feeding modes.

Processing specifications: board width 100-3000mm, board thickness 10-80mm. It can process various edge profiles including semicircular edge, quarter round edge, French edge, double French edge, Roman special-shaped edge, etc., with maximum processing speed up to 4 meters per minute.

It is standard equipped with 1.5m×0.6m feeding and discharging conveyor frame. Feeding direction: right to left.

Technical Parameters

Core Advantages

1、Intelligent Touch Screen Operation & Remote Network Connection

Equipped with high-definition touch control interface, easy to operate.

It supports remote network connection to realize remote equipment monitoring and fault diagnosis.

Processing parameters can be adjusted in real time during operation; various edge profile processing programs can be saved and recalled with one click.

2、Automatic Grinding Wheel Compensation Function

Adopts current-sensing automatic compensation system to monitor grinding wheel wear in real time.

It automatically fine-tunes the processing position as the wheel wears down.

Consistent machining accuracy is ensured all the time, cutting manual commissioning frequency by 80%.

3、Stepless Variable Frequency Speed Regulation

Feeding speed is freely adjustable from 0.5 to 3 meters per minute.

Speed can be matched according to stone hardness and edge profile complexity.

Balances production efficiency and finished quality, and saves energy at low speed operation.

4、Dual-mode Feeding Design

Continuous feeding: for mass standardized production of stones in uniform specifications.

Intermittent feeding: suitable for irregular-sized slabs and customized special-shaped stone processing.

Electric pressing mechanism is equipped to firmly fix stones during processing.

5、Integrated Manual & Automatic Control

Manual mode: dedicated for machine debugging, sample trial processing and customized special-shaped machining.

Automatic mode: unattended full-automatic mass production.

One-click switch between two modes without repeated debugging; processing can be paused and intervened anytime.

6、Reinforced Heavy-duty Machine Body Structure

Motor housings and pressure wheel guards are made of stainless steel.

The main frame undergoes three-layer anti-corrosion treatment: sandblasting derusting, anti-rust primer and wear-resistant finish paint.

Thickened welded steel structure ensures long service life, perfectly adapting to harsh wet working environment in stone factories.
