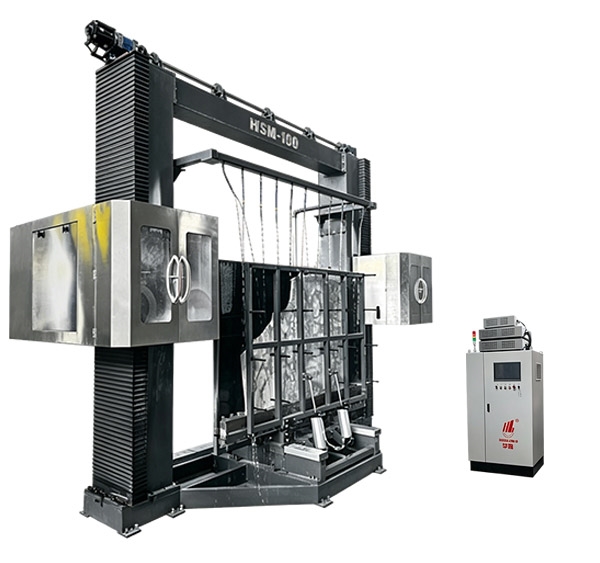

HLSW-100 超细单线绳锯机，是华隆机械专为高端珍稀石材薄板加工研发的高精度金刚石绳锯切割设备，适配各类高价值、薄脆难加工石材荒料开板作业，突破传统切割设备加工局限，兼顾加工精度、出材率与板材成品质感，是高端大理石、玉石、奢石、洞石板材规模化生产的核心装备。整机搭配独立数控控制柜 + 无线手持遥控器双操作系统，龙门式重型刚性机身稳定耐用，采用超细金刚石线双向智能切割工艺，大幅降低切割损耗，最大化珍稀石材原料利用率。

本机针对传统切割设备难以加工的高价值脆性石材专项优化，可稳定加工卡拉拉白大理石、蓝巴伊亚奢石、玉石、高端洞石等薄脆、高附加值荒料。传统设备切割易出现崩边、断裂、原料损耗严重等问题，HLSW-100 超细单线绳锯将切割损耗转化为成品收益，大幅降低珍稀石材加工报废率，拓展企业可加工原料品类，提升高端板材产品线竞争力，盘活稀缺石材原料价值。

设备搭载超细金刚石切割线 + 双向智能切削控制系统，切割缝宽极致狭窄，切割成型板材平整度极高。双向匀速进给切割方式受力均匀，不会划伤、撕裂石材天然纹理，完整保留原石天然色泽与纹路美感，切割后板材无需二次打磨修平，直接产出高品质成品薄板，大幅简化后续加工工序，节约人工与耗材成本。

双操作控制系统，操作便捷灵活

配备立式数控主控制柜，大屏触控可视化参数调节，可预设切割速度、进给速率、切割行程等全套加工参数，自动记忆多套石材加工程序；搭配无线手持遥控器，车间近距离操控设备启停、进退、调速，无需往返控制柜，单人即可完成设备调试与生产监控，适配大尺寸荒料加工场景。

重型龙门一体机身，运行稳定低震动

整机加厚钢结构龙门框架，重型底座配重设计，整机自重 10000kg，高速切割过程机身无明显抖动，杜绝薄板切割震裂隐患，长期连续加工精度不衰减。

模块化防水加工舱，防护耐用易维护

切割区域封闭式防水舱体，隔绝冷却水、石粉侵蚀内部传动与电气部件，延长设备使用寿命；舱体配备可视观察窗与检修门，日常清理、金刚石线更换、设备检修便捷高效。

名称	Name	单位 Unit	HLSW-100
金刚石线直径	Diameter of diamond wire	mm	0.3–1
最大加工尺寸	Max. processable size	mm	3600×2200×60
切割线速度	Wire speed	m/s	30
切割进给速度	Wire feed rate	mm/h	50–300
总功率	Gross power	kw	72
外形尺寸 (长 × 宽 × 高)	Dimension(L×W×H)	mm	6300×2500×5000
总重量	Gross weight	kg	10000

1. *高端大理石薄板量产：卡拉拉白、雪花白、鱼肚白等名贵大理石超薄板材开料；
2. *进口奢石加工：蓝巴伊亚、紫金沙、红洞石等纹理脆弱、高单价奢石切片；
3. *玉石、半宝石板材切割：各类脆性玉石、透光石材薄板加工；
4. *高端工程装饰板材、艺术石材、奢侈品石材原料切片。
5.


HLSW-100 超细单线绳锯机，以超细金刚石线切割核心技术解决高端珍稀石材加工痛点，窄缝切割提升原料出材率、双向切削保障板面完美质感、重型机身稳定加工、双系统操作降低人工门槛，助力石材加工厂切入高端薄板赛道，减少原料损耗、降低加工返工、提升成品溢价，是高端石材深加工企业提升产能与利润的核心升级设备。

HLSW-100 Ultra-Thin Diamond Wire Saw is a high-precision diamond wire cutting machine independently developed by Hualong Machinery for processing high-value rare stone thin slabs. It is specially designed for slab cutting of high-cost, thin and fragile stone blocks, breaking the processing limitations of traditional cutting equipment. Balancing processing precision, material yield and slab texture, it serves as the core production equipment for mass production of premium marble, jade, luxury stone and travertine slabs. Equipped with an independent numerical control cabinet and wireless handheld remote control for dual operation, the heavy-duty gantry rigid frame ensures long-term stable performance. Adopting ultra-thin diamond wire intelligent bidirectional cutting technology, the machine greatly reduces cutting loss and maximizes the utilization rate of rare stone raw materials.

Customized for high-value fragile stones that cannot be processed by conventional machines, this saw reliably cuts blocks of Carrara White marble, Blue Bahia luxury stone, jade, exclusive travertine and other thin, brittle high-cost materials. Conventional cutting equipment easily causes edge chipping, slab cracking and severe material waste. The HLSW-100 turns cutting risks into finished product profits, drastically lowering the rejection rate of rare stone processing, expanding the range of processable raw materials for factories, boosting competitiveness of high-end slab product lines and maximizing the value of scarce stone resources.

Fitted with ultra-thin diamond wire and intelligent bidirectional cutting control system, the machine achieves an extremely narrow cutting kerf and delivers outstanding slab flatness. Uniform stress during bidirectional constant-speed feeding avoids scratches and tearing on natural stone veins, fully preserving the original color and texture beauty of raw blocks. Slabs cut by this machine are premium finished products without secondary grinding or flattening, simplifying follow-up processing procedures and saving labor and consumable costs.

As a core upgrade equipment for high-end stone deep processing factories, the HLSW-100 Ultra-Thin Diamond Wire Saw solves key pain points of rare precious stone processing with ultra-thin diamond wire cutting technology. It improves raw material yield via narrow kerf cutting, guarantees flawless slab texture with bidirectional cutting, ensures stable long-term operation with heavy-duty frame, and lowers operation threshold with dual control systems. It helps stone factories enter the high-end thin slab market, reduce material waste and rework, and raise premium profits of finished stone products.

Ultra-Thin Wire Saw for Thin Slabs, Zero Waste for Rare Precious Stone

HLSW-100 High Precision Diamond Wire Saw, Special Cutting Machine for Luxury Stone & Jade

Narrow Kerf & High Flatness, Intelligent Bidirectional Cutting, Ideal for Mass Production of Premium Thin Slabs
