设备特点

1、采用带触摸屏的数控系统，带伺服电机一体化驱动，支持三轴同步联动插补运动，重复定位精0.03mm，为设备提供可靠的控制能力与加工精度。

2、7.5KW 大功率变频水冷主轴，噪音低、响应快、转速高，保障设备长时间运行的稳定性。

3、可移动式工作台，适配最大加工尺寸 1200×650mm，覆盖家用厨房、浴室常规台面盆孔加工需求。

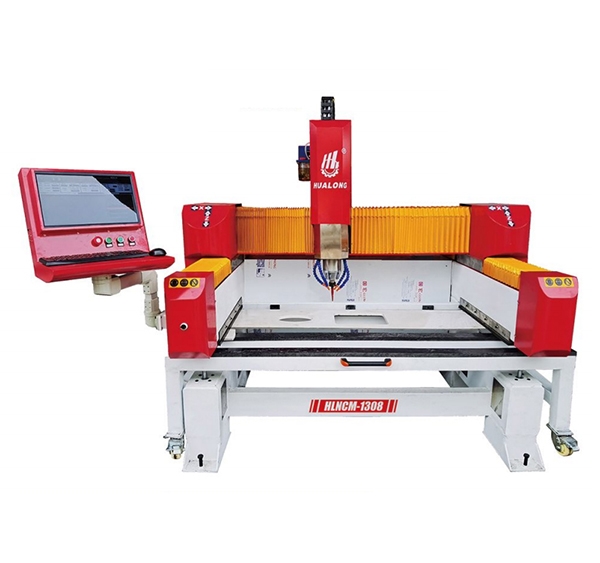

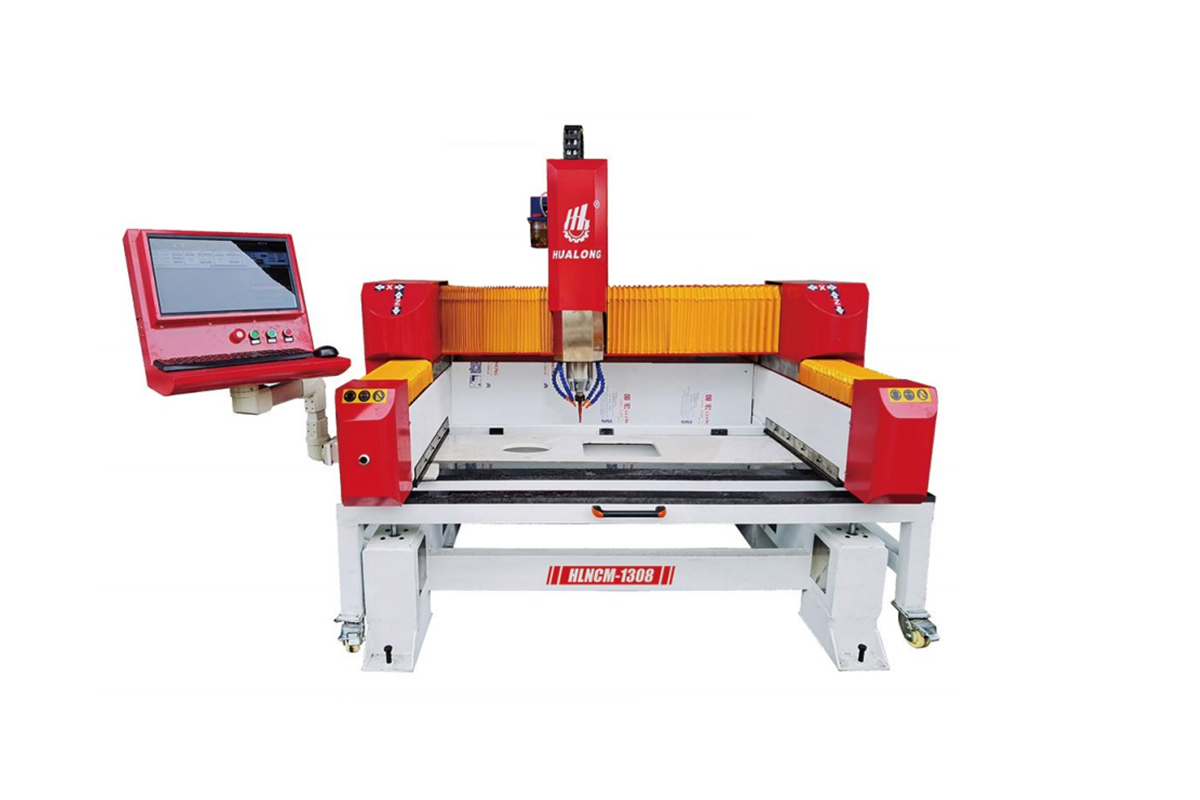

The HLNCM-1308 countertop sink cutout machine is a 3-axis countertop machining center independently developed by Hualong Machinery. Adopting NC Studio software, it enables the import of CAD drawings featuring sink contour profiles. Operators only need to set the machining depth and feed speed to initiate fully automatic processing without mastering complex programming techniques. Suitable for kitchen and bathroom countertops crafted from granite, marble, quartz stone and artificial stone, the machine performs multiple processes including sink hole cutting, contour edge trimming and drainage trough grooving.

Machine Features

1、Equipped with a touchscreen CNC control system and integrated servo motor drive, the machine supports three-axis synchronous linkage and interpolation motion, with a repeatability of 0.03 mm, delivering reliable control performance and superior machining precision.

2、Fitted with a 7.5 kW high-power variable-frequency water-cooled spindle featuring low noise, fast response and high rotational speed, it ensures stable long-hour operation of the equipment.

3、Adopts a movable worktable with a maximum processing dimension of 1200×650 mm, fully covering sink cutout machining demands for standard household kitchen and bathroom countertops.

The HLNCM-1308 countertop sink cutout machine manufactured by Hualong Machinery is compatible with all types of stone materials for processing. It enables fully automatic machining to cut labor costs, as a single operator can supervise 2 to 3 units simultaneously. Built with a high-rigidity frame structure, the machine boasts outstanding stability and durability. Its spindle speed is adjustable to suit different stone varieties, making it an extremely practical and cost-effective device for countertop sink machining.

Application Scenarios

*Sink cutouts for kitchen countertops

*Basin holes for bathroom vanity tops

*Drilling holes for round faucets
